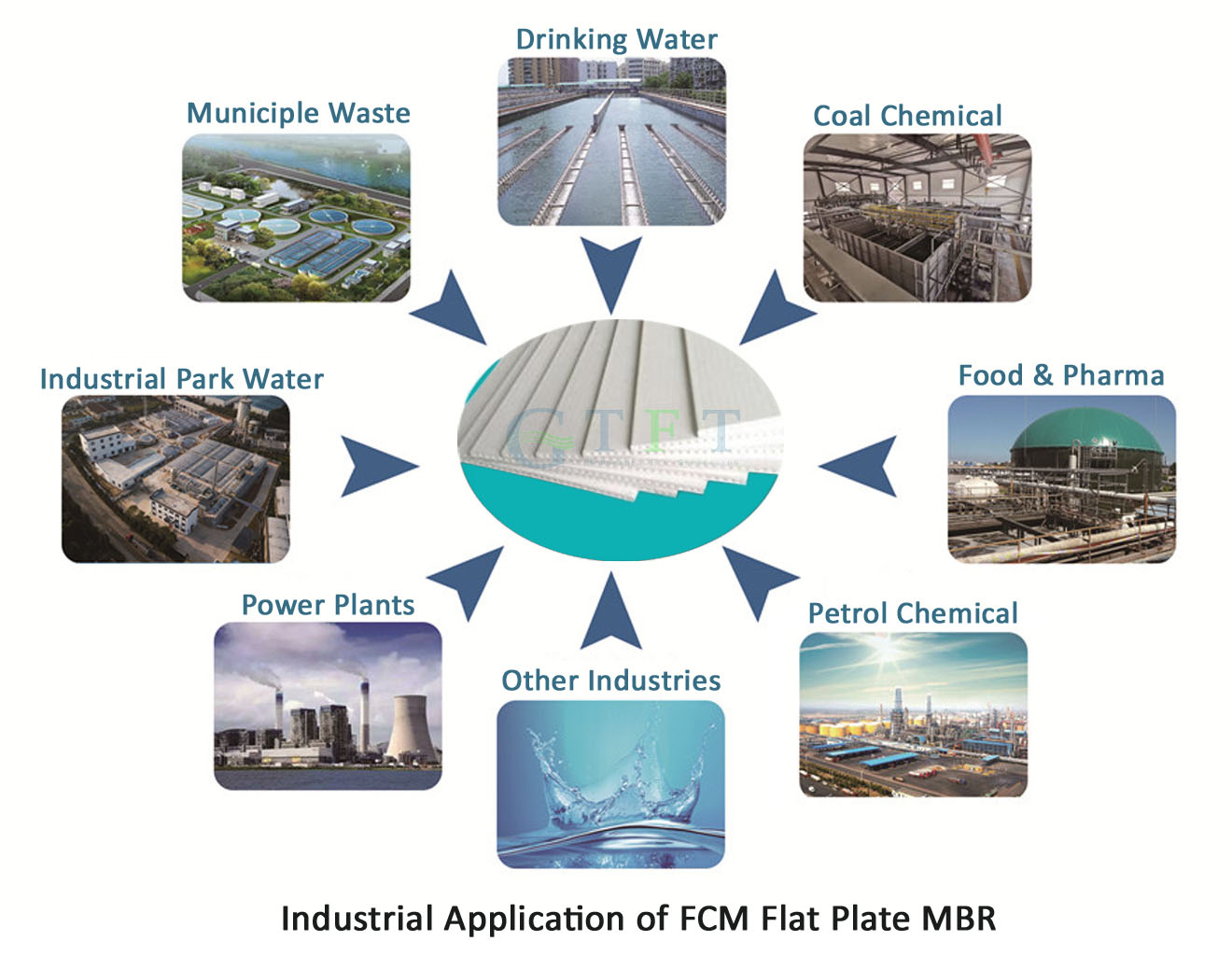

Because of the unique specification of flat sheet ceramic membrane,it can be suitable for different kind of application either in municiple or industrial field. Especially in those harsh condition with strong chemical or heavy fouling, flat sheet ceramic membranes can easily keep reliable performance in many years. TFT flat sheet ceramic membranes and MBR systems are widely used in many applications.

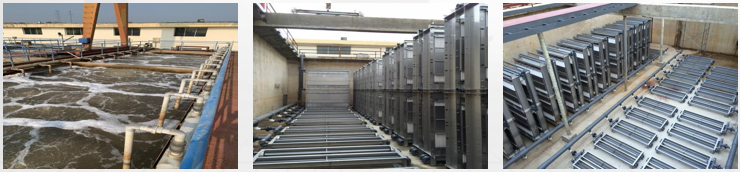

Case 1 Resin Industrial Sewage
The sewage discharged from industrial plants of epoxy resin, polyester resin, and TGIC water-based ink contains high COD and high salinity which is difficult to treat by normal biological process and polymeric MBR. FCM MBR system for such a high fouling waste project have been successfully running for several years without any failure.
Capacity：5000t/d
Process：Regulating Pool +Hydrolytic Acidification + Multi-level Biochemical Processing +FCM Flat MBR System
The sewage discharged from industrial plants of epoxy resin, polyester resin, and TGIC water-based ink contains high COD and high salinity which is difficult to treat by normal biological process and polymeric MBR. FCM MBR system for such a high fouling waste project have been successfully running for several years without any failure.
Capacity：5000t/d
Process：Regulating Pool +Hydrolytic Acidification + Multi-level Biochemical Processing +FCM Flat MBR System

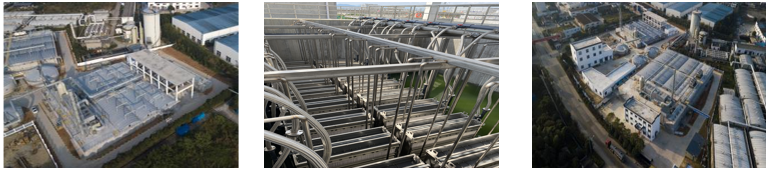

Case 2 Waste Water Treatment in Industrial Park
The waste water discharged from calcium carbonate stone industries contains a large number of powder particles with high salinity and hardness. FCM MBR system can work many years with high efficiency ,stable performance and low maintenance.
Capacity: 2000t/d
Process: Hydraulic Clarification + AO +FCM Flat Plate MBR System
Capacity: 2000t/d
Process: Hydraulic Clarification + AO +FCM Flat Plate MBR System

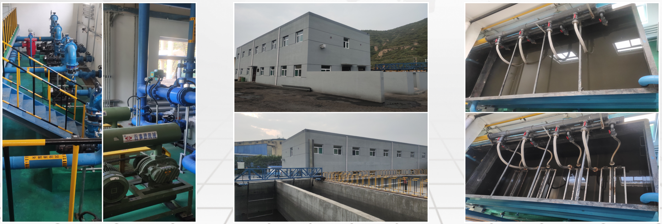

Case 3 Mine Water Treatment
Optimized FCM ceramic flat membrane operation system can work very stablely and high efficiency for mine water treatment. Nearly all suspended coal powders and bacterica、oil is removed. Filtrate from FCM can be reused as domestic water if combined with RO system.
Capacity：2000t/d
Process：Flocculation Sedimentation +Sand Filtration + Immersed FCM Flat Ultrafiltration
Capacity：2000t/d
Process：Flocculation Sedimentation +Sand Filtration + Immersed FCM Flat Ultrafiltration

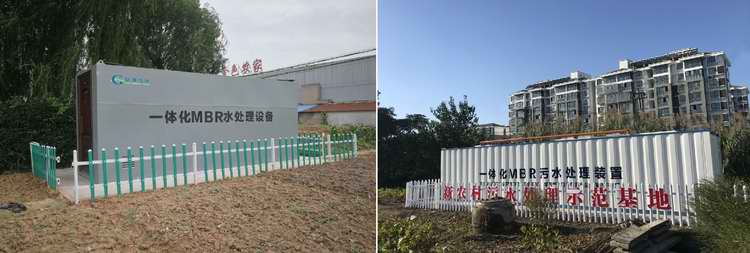

Case 4 Rural Sewage Integrated Treatment
Advantages of ceramic membrane MBR system in rural sewage integrated treatment are :Reliable performance, Less maintenance , High effluent standard, Small footprint, Low operating cost, Less remaining sludge, Containerized design etc.
Capcity：10-200t/d
Process：MBBR+Ceramic flat membraneMBR

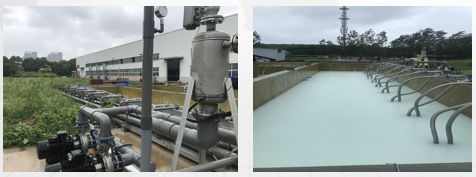

Case 5 Glass Fiber Processing Water Recycle
Glass fiber processing water contains very small fiber particles in a large amount of dilute sulfuric acid.FCM MBR membrane can easily remove all suspended solid from acid situation. High quality stable clean permeate acid water can be recycled back to upstream processing.
Capacity：3000t/d
Process：Regulating Pool + FCM Flat Ultrafiltration
